Burning Smell From a Cellar Cooling Unit

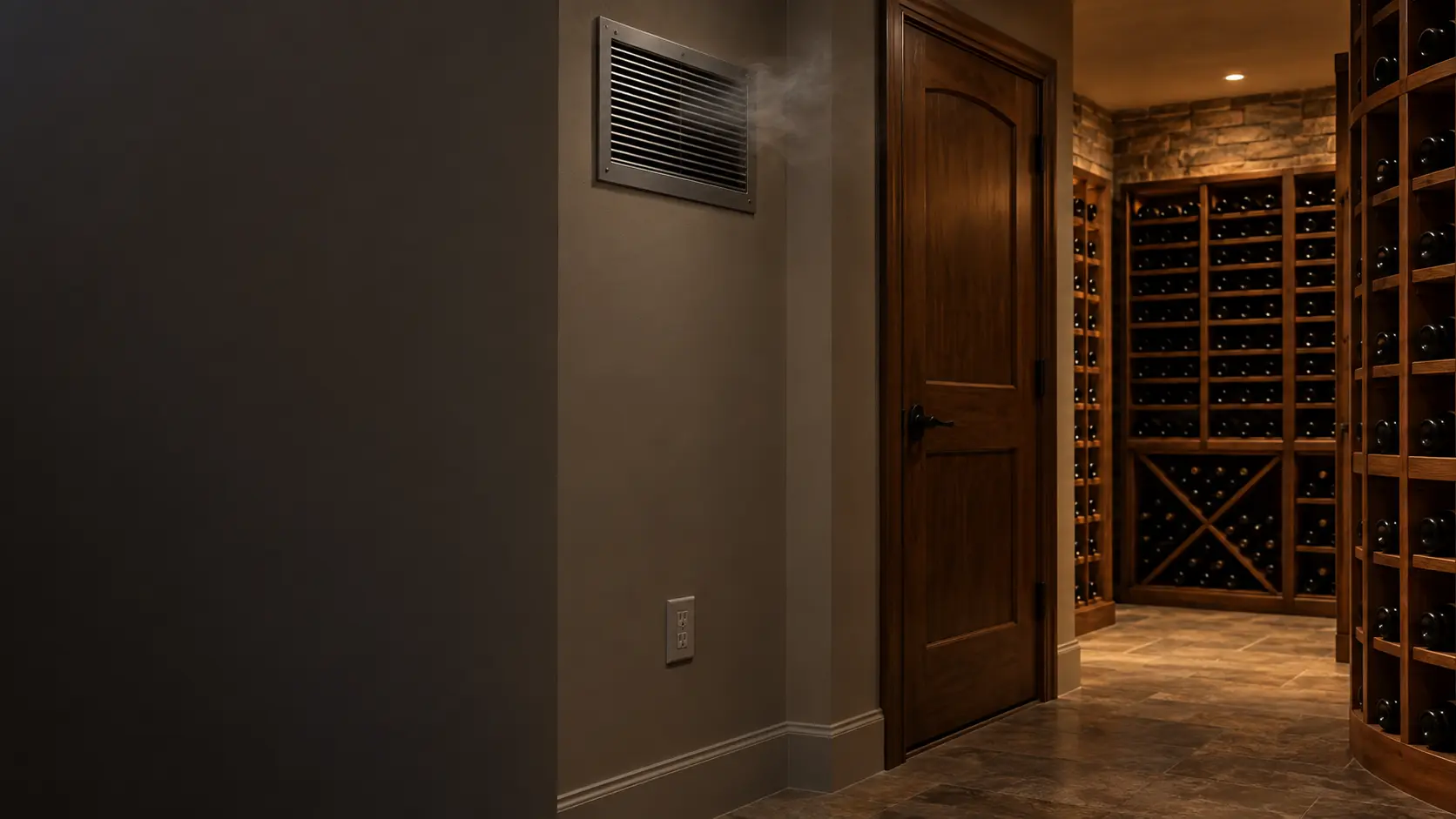

A cellar cooling unit burning smell reaches you as hot plastic or scorched dust at the cellar door or at the exhaust grille next door, sometimes with a buzz, a flicker of the controller or the unit shutting off on its own.
Mon–Sat, 8am–8pm
- The collection is exposed
- 5 questions that narrow it
- 5 causes, cheapest first
Book a visit
Three short steps, about a minute.
or call (844) 398-5977
Loading appointment form…
The appointment form couldn’t load. Please try again.
Collection first: cellar door shut, water near power left alone, breaker off from a dry panel
A burning smell from a unit built into a wall is urgent every time. Turn the circuit off from a dry panel, leave it off, keep the cellar door shut, and book the visit; a well-built cellar holds its cool for a day or more with the door closed.
What it
usually means.
A cellar unit holds a compressor, one or two fan motors, a controller board and a set of wiring connections, often packed into a box set into a wall or above a ceiling where nobody sees them for years. A burning smell usually means one of those parts is running far hotter than it should: a fan motor with seized bearings, a start component overheating, a loose connection that has been arcing at a terminal, or a cord and plug warming at a tired outlet. Dust baked onto a hot condenser coil can smell alarming too, and so can a new unit's first few hours of running. The difference matters little in the moment, because a smell of burning from something built into a wall is never worth waiting out. Cut the power first, from a dry panel, and let the cellar hold its temperature with the door shut while the cause is found.
The 5 causes, cheapest first
Answer these first
Does the smell come from the cellar side, the exhaust side in the next room, or the outlet and cord?
Is it sharp and electrical, like hot plastic, or dusty and fading, like a heater's first run of the season?
Did the unit stop, buzz, click repeatedly or trip a breaker when the smell appeared?
Can you see any darkening around the outlet, the plug or the unit's grille?
Was the unit recently installed, moved, or serviced?
Check these
before you book.
Cellar cooling unit burning smell: 5 checks, and none of them costs anything.
Keep the cellar door shut; if the room passes about 70°F before the visit, move the most valuable bottles to the coolest dark place in the house.
Switch the unit's circuit off at the breaker, standing on a dry floor at a dry panel; do not pull the plug if the outlet looks darkened or feels hot.
Do not switch it back on to see whether the smell returns.
Also worth checking
- From a distance, look for darkening around the outlet, the plug and the grilles, and note where the smell is strongest.
- Tell us the make, the model number and what you heard or saw when the smell started.
The causes,
cheapest first.
5 things burning smell from a cellar cooling unit turns out to be, from fan motor overheating to plug or outlet overheating.
The cost guide-
01 low to moderate
Fan motor overheating
A fan with dry or worn bearings turns slowly or not at all while its winding stays powered and heats up. It is one of the most frequent sources of a hot smell on a cellar unit.
-
02 low to moderate
Loose or burned wiring connection
A terminal that has loosened over years of vibration starts to arc and blacken. It gets worse with every run and has to be repaired, not tightened and forgotten.
-
03 low
Dust baking on a hot coil
A condenser coil matted with dust smells scorched when it runs hot. It is the mildest cause, but it still means the unit has been working too hard.
-
04 moderate
Compressor start components overheating
A start relay or capacitor that is failing can overheat as the compressor tries again and again to start.
-
05 varies
Plug or outlet overheating
A worn outlet, a plug that no longer grips, or an extension cord in the circuit turns into a heater under the unit's load. The unit may be fine; the outlet is not.
-
What it costs
Every repair on the site's cost scale, side by side
Open the cost guide
What else
it could be.
Most often confused with cellar cooling unit tripping the breaker, then cellar cooling unit fan not running.
All problems
The makes
it happens on.
7 makes on this site; burning smell from a cellar cooling unit can show up on any of them. Each mark opens that make's own page.
All 7 brandsBurning Smell From a Cellar Cooling Unit,
where we come out.
9 metros, each with its own page.
All service areasTampa BayFL · 31 areas
Miami / South FloridaFL · 47 areas
New York MetroNY · 75 areas
HoustonTX · 36 areas
ChicagoIL · 50 areas
Los AngelesCA · 95 areas
San DiegoCA · 31 areas
Questions about
burning smell from a cellar cooling unit.
The burning smell stopped after I turned the cellar unit off. Can I turn it back on?
My new cellar unit smells a little hot. Is that normal?
Could the smell come from the outlet rather than the unit?
How long will the cellar stay cool with the unit off?
Back to your everyday
Still seeing burning smell from a cellar cooling unit?
Book with what you checked above — 5 answers save the technician the first part of the visit.
