Ceiling-Mounted Cellar Cooling Repair

A cooling unit hung in the cellar ceiling or set into the space above it, so only a grille shows, with its heat sent into the space above or ducted away.

(844) 398-5977

Mon–Sat, 8am–8pm

4 things that fail on it
5 makes build it
6 problems it shows

Book a visit

Three short steps, about a minute.

or call (844) 398-5977

Is yours
a ceiling-mounted?

A ceiling-mounted unit saves wall space for racks and keeps the machine out of sight. Some models hang from the joists with a grille flush in the cellar ceiling and blow cold air sideways across the room; others sit entirely above the ceiling, in a joist bay or the floor space of the room above, and reach the cellar only through supply and return openings. Either way the heat has to go somewhere, into an attic, a mechanical space or a duct to the outside of the cellar, and that space has to stay within the maker's limits. Gravity is the challenge with this type: the condensate pan sits right above bottles, racks and sometimes a finished wood ceiling, so a blocked drain or a failed condensate pump shows up as a drip onto the collection. Service begins by opening the grille, looking at the pan and the drain, and checking where the exhaust heat is actually going before the refrigeration parts are tested.

A technician kneeling on a dry stone floor in a US home wine cellar replacing a small white condensate pump fixed low on the wall beneath a wall-mounted cellar cooling unit, clear tubing running up to the unit, wooden racks of wine bottles beside him.

What fails on a ceiling-mounted cellar cooling

How to tell

The only thing visible in the cellar is a square or rectangular grille in the ceiling, often with supply slots on one side and a return opening on the other.

Above the cellar, in an attic, a closet floor or a mechanical space, there is a metal cabinet or a hatch that opens onto the unit.

A drain line or a small pump with a tube leaves the unit, and a wall control or a remote display sits in or just outside the cellar.

The model name includes words such as ceiling mount or in-ceiling, and the installation guide describes support straps or a frame set between joists.

Not yours?Through-the-wall cellar cooling unit Ducted cellar cooling unit Split-system cellar cooling

What fails
on this design.

On a ceiling-mounted cellar cooling: a drain that backs up over the bottles, heat trapped above the ceiling, a fan that is hard to hear, sweating around the grille.

The problems it shows

A drain that backs up over the bottles

The condensate pan sits directly over the room. Slime in the pan, a drain line with no slope or a pump whose float sticks lets water rise and spill, and it falls onto racks, labels and the floor below.

Heat trapped above the ceiling

The exhaust side often discharges into an attic or a joist space. A hot attic, blocked vents or insulation packed against the unit leave the condenser breathing hot air, and it trips on overload or never brings the cellar down.

A fan that is hard to hear

With the machine above the ceiling, a failing fan often goes unnoticed until the cellar warms. Dust on the wheel, a dry bearing or a loose mount turns into a slow fan, then a stopped one.

Sweating around the grille

A gap between the grille and the ceiling, or missing insulation around the unit's frame, lets warm, humid air meet cold metal. Drops form on the grille or the ceiling and can stain wood or feed mold.

Getting at it,
and whether to.

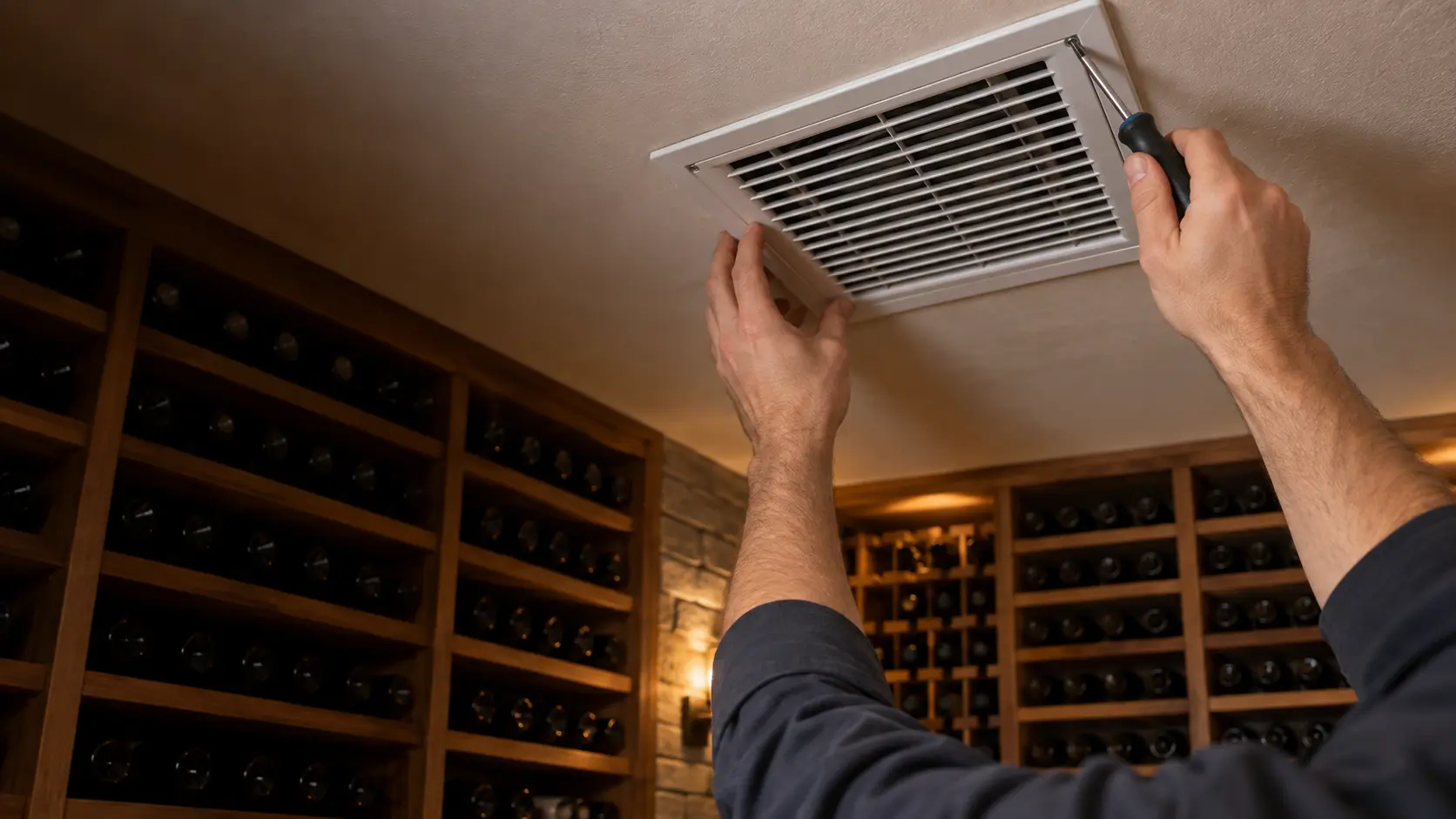

The unit is reached from below through the grille or from above through an attic, hatch or floor panel; tell us which exists and keep it clear.

What repairs cost

On the visit

Move the most valuable bottles and any open wood cases out from directly under the grille before the visit, since the pan may drip as it is opened.
The technician needs a ladder under the grille and a clear path in the room above, including any stored items over the hatch.
If water is dripping near a light fixture or an outlet, switch that circuit off at the breaker from a dry floor and keep everyone out of the room.

Repair or replace

Ceiling units are fitted into framing and finishes, so clearing a drain, changing a pump, a fan or a sensor, or improving the exhaust path above the ceiling beats replacement in almost every case. Replacing makes sense when a compressor or the sealed system fails on an older unit, or when the model is no longer made and a new one needs a different opening. The technician gives both figures and the work each would take on your ceiling.

Book a visit for a ceiling-mounted cellar cooling

The problems
it shows.

On a ceiling-mounted cellar cooling, most often cellar cooling unit leaking water.

All problems

The cellar-side grille of a through-the-wall cooling unit high on a plastered wine cellar wall, a dark wet streak running down the plaster below it toward a wall outlet, wooden racks of unlabeled bottles along the side wall and a folded towel on the tile floor.

The collection is exposed

Cellar Cooling Unit Leaking Water

6 causes, cheapest first

A modern glass-walled wine cellar seen from the dining room side, fine fog and beads of condensation across the lower half of the tall glass panel, racks of unlabeled bottles on metal pegs blurred behind it.

Condensation on Wine Cellar Walls or Glass

5 causes, cheapest first

A small stone-walled wine cellar with dark wooden racks full of unlabeled bottles lying on their sides, a through-the-wall cooling unit grille set high on the far wall and a round dial thermometer standing in a glass of water on a tasting shelf in front.

The collection is exposed

Wine Cellar Too Warm

6 causes, cheapest first

The lower corner of a wine cellar where a wooden rack post meets a plastered wall, fine pale spots of mold on the wood grain and darker specks along the plaster, unlabeled bottles resting in the rack slots.

Wine Cellar Humidity Too High or Mold

5 causes, cheapest first

A ceiling-mounted cellar cooling unit set into the wooden ceiling of a wine cellar, its slotted grille seen from below with a still fan blade visible in the shadow behind, rows of unlabeled bottles in racks along the walls below it.

Cellar Cooling Unit Fan Not Running

4 causes, cheapest first

A slim wall-mounted cellar cooling controller on a stone wine cellar wall, its screen dark and blank, a thin gray cable running from it along the edge of a wooden rack of unlabeled bottles.

Cellar Cooling Controller Display Blank

4 causes, cheapest first

Who builds
a ceiling-mounted.

5 of the makes on this site build a ceiling-mounted cellar cooling. Each mark opens that make's own page.

All 7 brands

Ceiling-mounted cellar cooling repair,
where we come out.

9 metros, each with its own page.

All service areas

Tampa BayFL · 31 areas

OrlandoFL · 30 areas

Miami / South FloridaFL · 47 areas

New York MetroNY · 75 areas

HoustonTX · 36 areas

ChicagoIL · 50 areas

Los AngelesCA · 95 areas

San DiegoCA · 31 areas

San Francisco Bay AreaCA · 74 areas

A couple lifting a bottle from a lit stone-walled wine cellar, the cooling unit's grille high on the far wall — For the heart of your home.

Questions about
ceiling-mounted cellar coolings.

Water is dripping from the grille in my cellar ceiling. Where do I start?

Move the bottles and any cardboard cases from under it and catch the water in a tray. If it is near a light fixture or wiring, switch that circuit off at a dry panel. Then book a visit; a blocked drain line or a stuck condensate pump is the usual cause and is often a short repair.

Where does the heat from an in-ceiling cellar unit go?

Into the space above the ceiling, or through a duct to another room or outside, depending on the model. That space has to stay within the temperature the maker lists and has to be large or vented enough. An attic that bakes in summer is a common reason a ceiling unit falls behind.

Does a ceiling-mounted unit cool a cellar evenly?

It can, since cold air falls naturally, but the grille needs to throw air across the room, and tall racks placed right under the discharge can block it. A few degrees between the top and bottom rows is normal. A larger difference is worth measuring during a visit.

Can a ceiling unit be serviced without opening the cellar ceiling?

Most parts come out through the grille opening or from the space above, so the ceiling itself stays intact. A leak in the sealed system or a unit that must come out entirely may need wider access. The technician tells you before anything is cut or removed.
