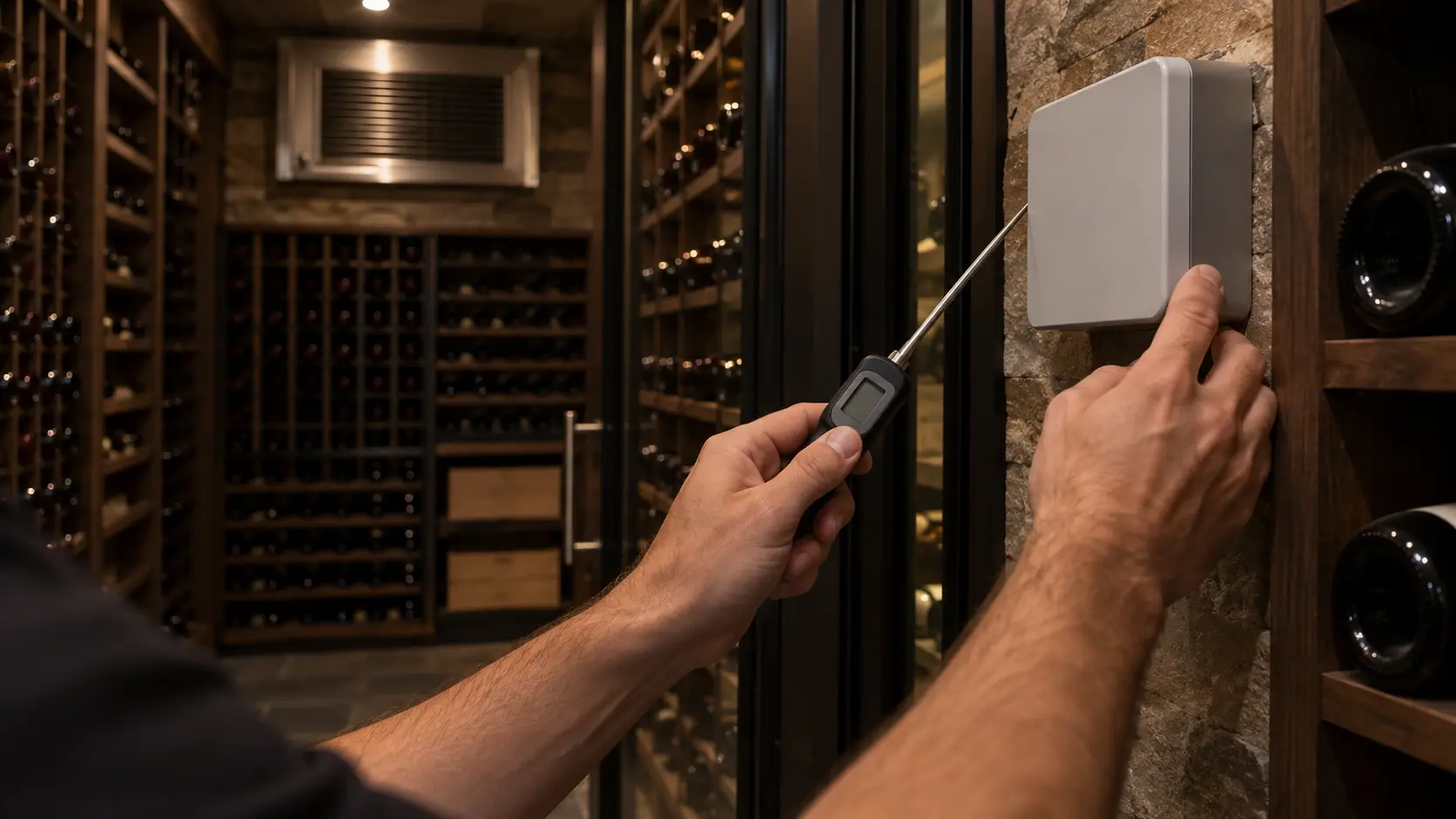

A technician holding a reference probe thermometer beside a small blank wall-mounted cellar controller next to the glass door of a US home wine cellar, dark wood racks of wine bottles visible through the glass, soft warm lighting on any screen.

Cellar Controller and Sensor Repair

Getting the controller, its display and its probes to read the cellar truthfully and call for cooling at the right time.

(844) 398-5977

Mon–Sat, 8am–8pm

Moderate cost band
5 steps on the visit
6 problems it answers

Book a visit

Three short steps, about a minute.

or call (844) 398-5977

What the cellar controller and sensor repair
involves.

A modern cellar unit is run by a small controller: a board in the unit, a display on the case or on the wall, and two or more probes that read the air in the cellar, the temperature of the coil and sometimes the humidity or a bottle. The controller decides when the compressor starts, whether the fans run constantly, when the coil is allowed to defrost and when an alarm appears. A probe that reads two degrees off makes a cellar sit two degrees wrong; a coil probe that drifts can end defrost too early, so ice builds, or hold the compressor off while the room warms. Displays go blank from a loose cable, a failed transformer or a board damaged by a power surge or a wet cellar. The technician compares each probe with a reference thermometer, reads the settings and any stored codes, checks the voltages the board receives and sends, and looks at the cable between a remote display and the unit. Probes, displays and boards are replaced with parts matched to the model, and the settings, including the set point and the differential, are put back to what your cellar needs.

How the visit goes

What it usually costsModerate · Air or coil probe, display, transformer or control board

A probe or a fuse is a small repair. A control board or a remote display made for one make of cellar unit costs more and sometimes has to be ordered, and a long cable run to a wall display can add time.

Answers 6 problemsCellar Cooling Controller Display Blank

Cellar Cooling Unit Error Code · Wine Cellar Too Cold · Cellar Cooling Unit Short Cycling · Cellar Cooling Unit Not Turning On · Wine Cellar Too Warm

Comes up most onThrough-the-wall cellar cooling unit

Ducted cellar cooling unit · Split-system cellar cooling · Ceiling-mounted cellar cooling

Codes that lead hereEr · LO · HI · E1

Breezaire Er: the Sentry III has lost its temperature sensor.

Cellar controller and sensor repair,
step by step.

Watch a full cycle so the start, the stop and the defrost follow the controller as they should.

Compare what the controller shows with a reference thermometer among the bottles and at the coil.

Read the settings, the differential, any stored codes and the alarm history.

Measure each probe's resistance against its chart, and check the transformer, the fuses and the cable to a remote display.

Replace the probe, the display or the board with parts made for the model, and restore the settings your cellar needs.

Watch a full cycle so the start, the stop and the defrost follow the controller as they should.

The problems
it answers.

6 of them, from cellar cooling controller display blank to wine cellar too warm.

All problems

A slim wall-mounted cellar cooling controller on a stone wine cellar wall, its screen dark and blank, a thin gray cable running from it along the edge of a wooden rack of unlabeled bottles.

Most common

Cellar Cooling Controller Display Blank

4 causes, cheapest first

Before you call

Tell us this when you book

What the display shows, including any letters, numbers or blinking symbol
What a separate thermometer among the bottles reads compared with the display
Whether there was a storm, an outage or water near the unit before the problem began
Whether the display is on the unit or on a wall, and how far it is from the unit

It also answers

Moderate,
on the site's scale.

Read the full cost guide

Repair	Relative cost
Start capacitor, contactor, compressor or sealed-system restriction
Leak search, joint or coil repair and a weighed charge
Evaporator or condenser fan motor, blade or capacitor
Air or coil probe, display, transformer or control board	moderate
Drain line, drain pan or condensate pump
Thawing an iced coil and correcting its cause
Line set section, insulation or control cable
Humidifier module, humidity probe or settings
Cooling load and room survey

Where it
comes up most.

Most bookings: Through-the-wall cellar cooling unit, Ducted cellar cooling unit, Split-system cellar cooling, Ceiling-mounted cellar cooling.

All wine cellar cooling unit types

Codes that lead here

All 12 codes that lead here

Often the same visit

A wine cellar cooling unit set into the upper part of a stone wall in a US home wine cellar, its cellar-side grille flush with the wall above dark wood racks full of wine bottles, cool soft lighting.

Through-the-wall cellar cooling unit

A wine cellar in a US home seen from inside, a white rectangular supply grille for its cooling unit set in the wood-paneled ceiling above tall dark racks of wine bottles, a matching return grille low on the far wall, soft even lighting.

Ducted cellar cooling unit

A slim white split-system wine cellar evaporator unit mounted high on a plastered wall of a US home wine cellar above curved wooden racks of wine bottles without labels, insulated copper lines entering the wall beside it, warm low lighting.

Split-system cellar cooling

The makes
we see it on.

7 makes on this site, and the cellar controller and sensor repair on any of them. Each mark opens that make's own page.

All 7 brands

Cellar controller and sensor repair,
where we come out.

The cellar, the climate and the building all change how the cellar controller and sensor repair goes. These notes are about that, metro by metro.

All service areas

Tampa BayFL · 31 areas

Power flickering on and off as Tampa Bay's lines came back after Milton left some cellar controllers blank or reset to their defaults, and the repair restores the setpoint and humidity target and tests the board and its probe against a thermometer set among the bottles.

OrlandoFL · 30 areas

Rental guests in Orlando find a cellar controller on the wall and change it, so the repair often begins by restoring the setpoint, locking the keypad where the model allows and making sure the probe still hangs mid-room rather than in front of the cold supply grille.

Miami / South FloridaFL · 47 areas

Owners who spend summers away from South Florida rely on a cellar controller with an alarm or an app, and when the alerts go quiet the repair checks the controller, its Wi-Fi module and its probe, since a probe reading low can hide a warm cellar for weeks.

New York MetroNY · 75 areas

In a New York brownstone cellar the controller's probe may hang near the old stone wall, which stays colder than the room, so the unit shuts off early while the upper racks sit warm, and the repair moves or replaces the probe and checks it against the bottles.

HoustonTX · 36 areas

Houston's summer storms bring brownouts that can scramble a cellar controller's memory, and the repair checks the board's power supply and the remote sensor lead running from the unit into the room, since a damaged lead reads as a wildly wrong temperature.

ChicagoIL · 50 areas

A Chicagoland basement cellar can sit at 50 degrees all winter while the display insists on 55 if its sensor has drifted, and the repair checks every probe against a calibrated thermometer before anyone lowers or raises the setpoint to compensate.

Los AngelesCA · 95 areas

A Los Angeles showpiece cellar with glass walls may carry one probe for the air and another for the bottles, and the repair checks both, since a controller reading only the air near the supply grille lets the bottles against the glass run warmer all summer.

San DiegoCA · 31 areas

In a San Diego cellar that barely calls for cooling in winter, a controller set with too tight a differential starts and stops the unit on every small swing, and the repair checks that setting and the probe position along with the board itself.

San Francisco Bay AreaCA · 74 areas

Bay Area collectors often ask for the controller's temperature log after a heat spell or a power shutoff, and the repair reads that history where the controller keeps one before a board or a sensor is replaced, so the owner knows how warm the cellar got and for how long.

A couple lifting a bottle from a lit stone-walled wine cellar, the cooling unit's grille high on the far wall — For the heart of your home.

Questions about
the cellar controller and sensor repair.

The display says 55°F, but my thermometer reads 60°F. Which is right?

Check where each one sits. A thermometer next to the unit's grille reads the cold air leaving it; one near the floor or the door reads something else. If a thermometer among the bottles still disagrees by several degrees after a day, the cellar probe may have drifted and is worth testing.

Why did the cellar display go blank after a storm?

A surge or an outage can trip the unit's breaker, blow a fuse on the board or damage the transformer. Check the breaker first from a dry panel. If power is on and the screen stays dark, book a visit and keep the cellar door closed.

What does the differential setting on a cellar controller do?

It sets how far the cellar may drift above the set point before cooling starts. Too small, and the compressor starts and stops often; too wide, and the room swings more than wine likes. The technician sets it for your room and unit.

Back to your everyday

Ready to book the cellar controller and sensor repair?

Have these to hand: what the display shows, including any letters, numbers or blinking symbol, what a separate thermometer among the bottles reads compared with the display, whether there was a storm, an outage or water near the unit before the problem began, whether the display is on the unit or on a wall, and how far it is from the unit.
