Cellar Cooling Unit Short Cycling
A cellar cooling unit short cycling starts, runs for a few minutes and stops, then starts again soon after, so the room temperature bounces and the air feels cold but clammy.
Mon–Sat, 8am–8pm
- 5 checks before you book
- 5 questions that narrow it
- 5 causes, cheapest first
Book a visit
Three short steps, about a minute.
or call (844) 398-5977
Loading appointment form…
The appointment form couldn’t load. Please try again.
What it
usually means.
A healthy unit runs in cycles long enough to cool the room and pull moisture out of the air, then rests. When the cycles shrink to a few minutes, something is stopping the run early. The simplest cause is a unit much larger than the room: it cools the air near the sensor fast and shuts off before the walls, the racks and the bottles have cooled, and before much water has left the air. A sensor in a cold draft from the unit's own supply does the same. Other causes are protective: an overheating compressor switches itself off and restarts when it cools, a pressure control trips on a hot exhaust side or a low charge, or a controller with too tight a differential keeps flicking on and off. Short cycling wears the start parts quickly and usually leaves the room damp.
The 5 causes, cheapest first
Answer these first
How long does each run last, and how long is the rest before the next one?
Where is the room sensor, and does the unit's cold air blow on it?
Is the exhaust side hot, and does the unit feel hot to the touch when it stops?
Does the cellar feel damp or show a high humidity reading?
Was the unit sized for this room, or moved from another space?
Check these
before you book.
Cellar cooling unit short cycling: 5 checks, and none of them costs anything.
Time a few runs and rests with a watch, so we know the pattern.
Look at where the room sensor sits and whether cold air from the unit reaches it.
Clear the exhaust side and check whether the cycles lengthen.
Also worth checking
- Read the humidity on a middle rack; short cycling usually leaves it high.
- Tell us the make, the model number and the size of the cellar.
How soon does it need a visit?
Not urgent, but constant restarts wear the compressor's start parts. Book within a week or two, sooner if the cycles are getting shorter.
The causes,
cheapest first.
5 things cellar cooling unit short cycling turns out to be, from controller differential set too tight to unit oversized for the room.
The cost guide-
01 no repair
Controller differential set too tight
Many controllers let you choose how far the room may drift before the unit starts. Set to its smallest step, the unit restarts constantly. The manual shows how to widen it.
-
02 low
Sensor in the unit's cold air stream
A sensor sitting in the supply air reads cold the moment the unit starts, and the controller shuts it off almost at once.
-
03 moderate to highest
Compressor overheating and resetting
An internal overload switches a hot compressor off and lets it try again once it has cooled a little. The cause behind the heat, often the exhaust side, needs fixing first.
-
04 moderate
Pressure control tripping
On split systems and larger units, pressure switches stop the compressor when pressures leave safe limits, which a low charge or a blocked condenser will cause.
-
05 varies
Unit oversized for the room
Too much capacity cools the air in minutes and stops before the room settles or dries. A room check compares the unit to the heat load and shows what can be done, from control settings to a different unit.
-
What it costs
Every repair on the site's cost scale, side by side
Open the cost guide
What else
it could be.

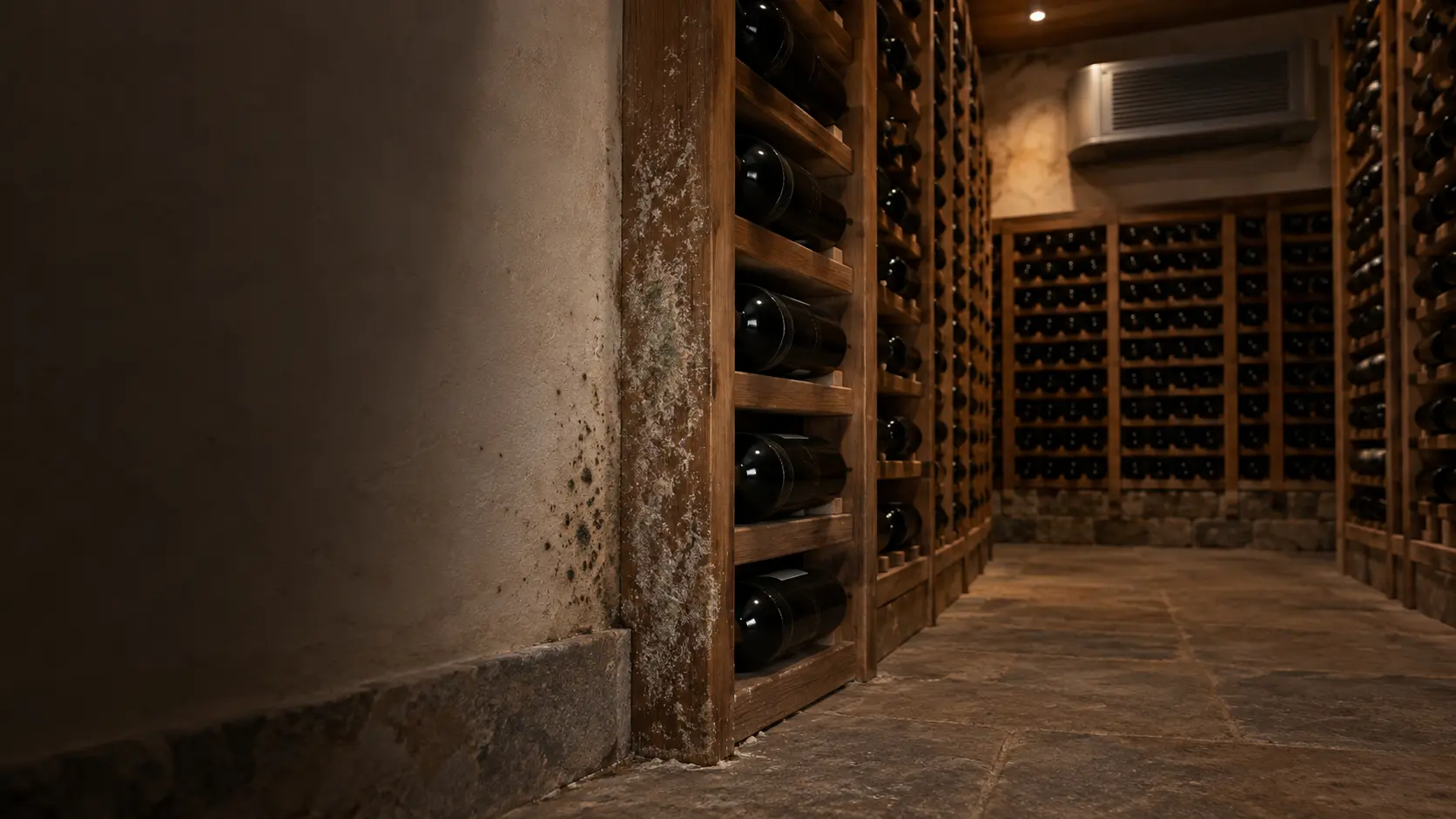

Most often confused with wine cellar humidity too high or mold, then cellar cooling unit exhaust overheating.
All problems
The makes
it happens on.
7 makes on this site; cellar cooling unit short cycling can show up on any of them. Each mark opens that make's own page.
All 7 brandsCellar Cooling Unit Short Cycling,
where we come out.
9 metros, each with its own page.
All service areasTampa BayFL · 31 areas
Miami / South FloridaFL · 47 areas
New York MetroNY · 75 areas
HoustonTX · 36 areas
ChicagoIL · 50 areas
Los AngelesCA · 95 areas
San DiegoCA · 31 areas
Questions about
cellar cooling unit short cycling.
Why would a bigger cellar unit work worse?
How long should a cellar unit run each cycle?
Can a controller setting fix short cycling?
Is short cycling hard on the compressor?
Back to your everyday
Still seeing cellar cooling unit short cycling?
Book with what you checked above — 5 answers save the technician the first part of the visit.
