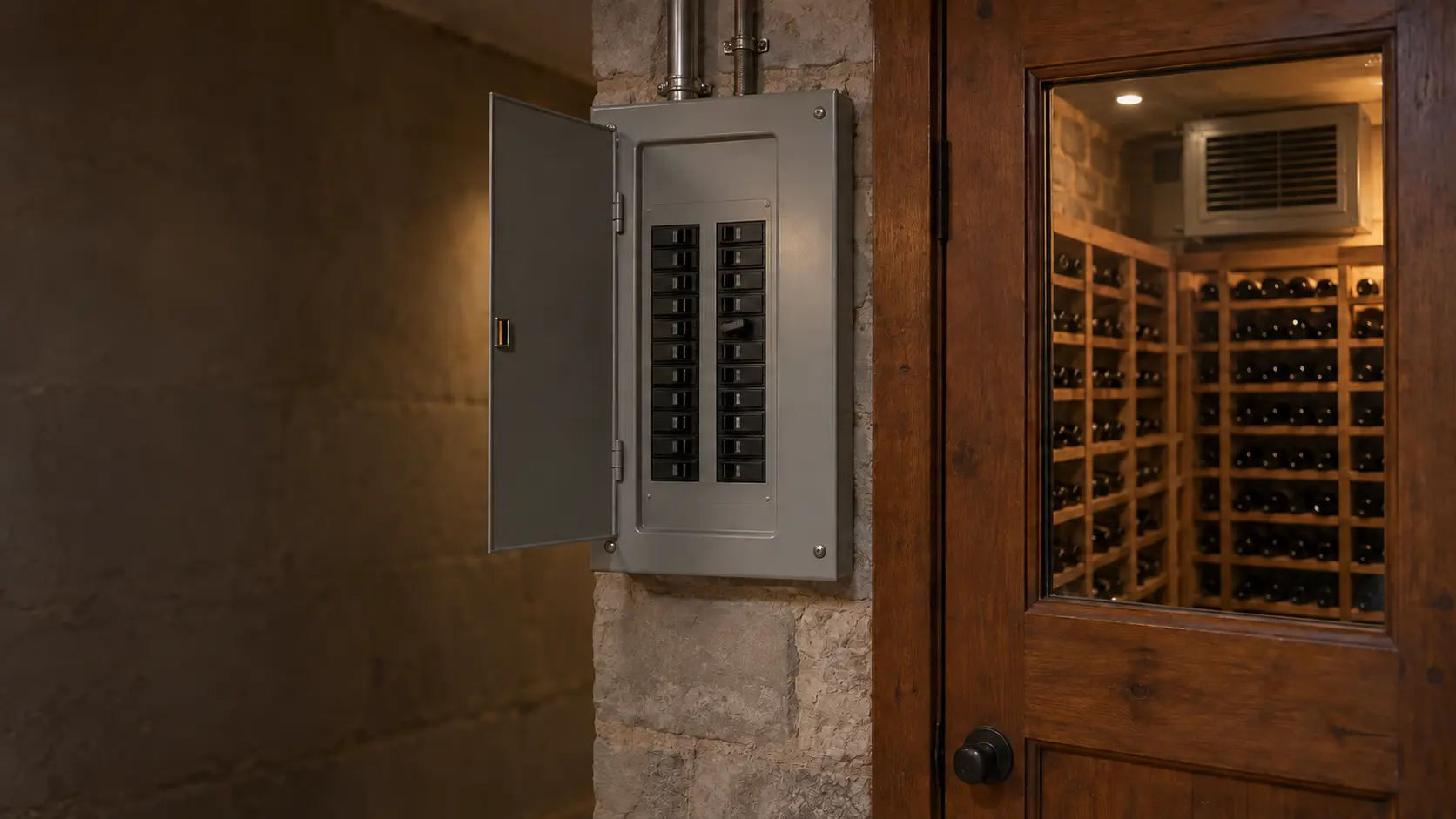

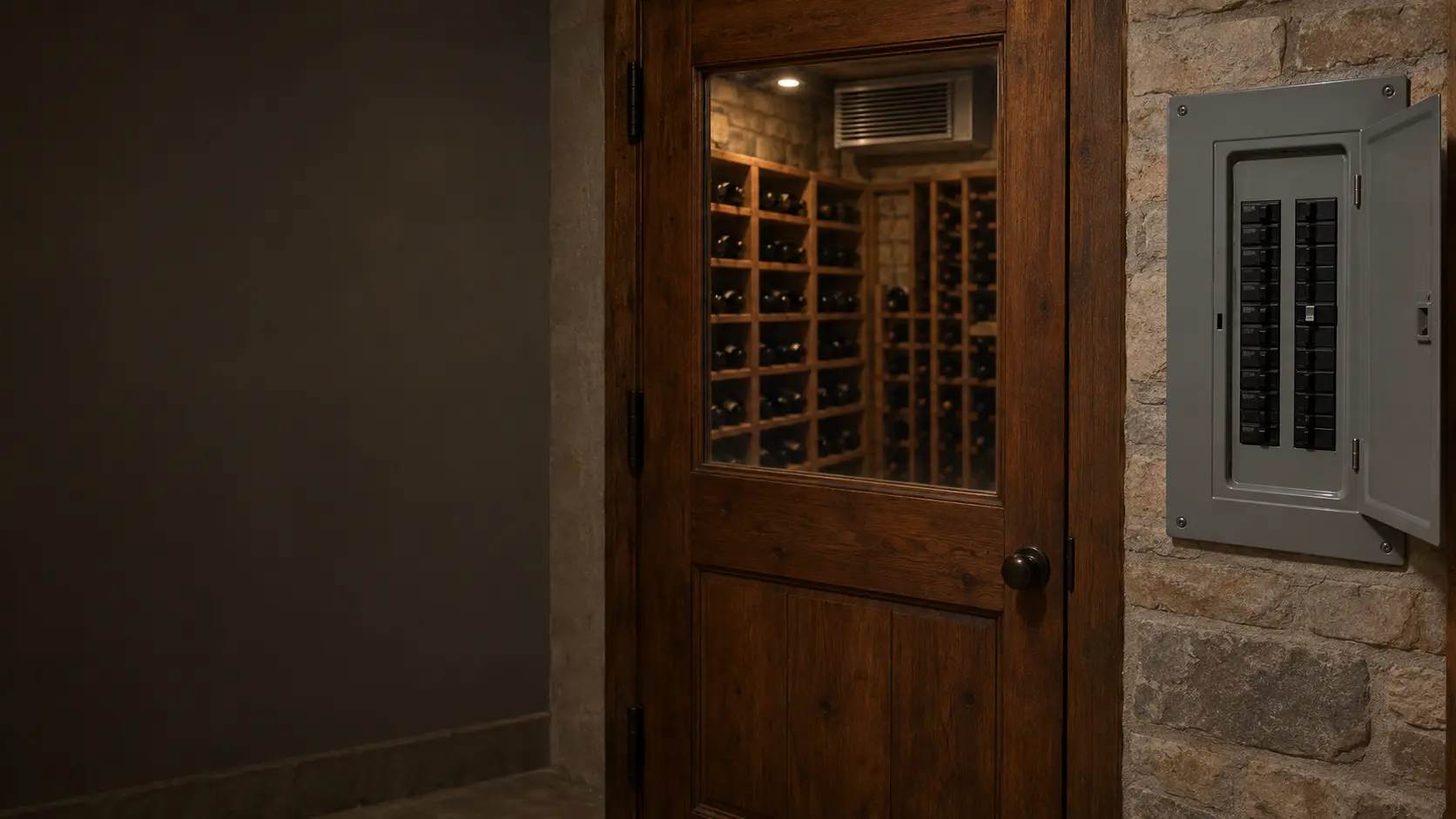

An open gray electrical panel on a dry basement wall beside the closed wooden door of a wine cellar, one breaker switch sitting in the tripped middle position among a neat row of others, a small window in the cellar door showing dim racks of unlabeled bottles.

Cellar Cooling Unit Tripping the Breaker

A cellar cooling unit tripping breaker trouble looks like a silent unit, a warm cellar in the morning, and a breaker or GFCI outlet that has snapped off, sometimes the moment the compressor tries to start.

(844) 398-5977

Mon–Sat, 8am–8pm

  • The collection is exposed
  • 5 questions that narrow it
  • 5 causes, cheapest first

Book a visit

Three short steps, about a minute.

or call (844) 398-5977

Collection first: cellar door shut, water near power left alone, breaker off from a dry panel

A tripping breaker is urgent because the cellar warms while the unit is off, and because a trip can mean water or a short. Reset once from a dry panel; if it trips again, leave it off, keep the door shut and book.

What it
usually means.

A cellar unit draws its heaviest current in the second the compressor starts, and a steady load after that for hours at a time. A breaker trips when it sees more current than its rating, and a GFCI trips when some current leaks to ground, which water inside the unit or on a cord will cause. A breaker that trips at start points toward the compressor or its start parts; one that trips after a long run points toward heat building up, often from a choked exhaust side; a GFCI that trips points toward moisture, frequently from a condensate problem. Sharing the circuit with a freezer, a dehumidifier or a space heater can overload it as well, and many makers ask for a dedicated circuit. Resetting a breaker again and again is not a fix: each trip is the circuit telling you something is wrong, and meanwhile the cellar warms, which is why this is urgent.

A close view of an open wine cellar cooling unit pulled from its wall sleeve on the exhaust side of a US home wine cellar, showing a black compressor, copper tubing and a start capacitor, a technician's gloved hand holding a meter probe to a terminal. The 5 causes, cheapest first

Answer these first

01

Is it a breaker at the panel that trips, or a GFCI outlet with test and reset buttons?
02

Does it trip the instant the unit starts, after a long run, or at random times?
03

Is anything else on the same circuit, such as a dehumidifier, a freezer or lighting in the cellar?
04

Is there any water on or near the unit, its cord or the outlet?
05

Did it start after a storm, a power outage, or work on the house wiring?

Check these
before you book.

Cellar cooling unit tripping breaker: 5 checks, and none of them costs anything.

01

Keep the cellar door shut while the unit is off; if the room passes about 70°F, move the most valuable bottles to the coolest dark place in the house.

02

Reset the breaker once, only from a dry panel with dry hands; if there is water near the unit or its outlet, leave it off and stay clear.

03

If it trips again, leave it off rather than resetting it a third time.

Also worth checking

  • Note when it trips: at start, after a long run, or at random, and what else runs on that circuit.
  • Tell us the make, the model number and whether a breaker or a GFCI outlet is tripping.

The causes,
cheapest first.

5 things cellar cooling unit tripping the breaker turns out to be, from circuit shared with other loads to overheating from a choked exhaust.

The cost guide
  1. 01 no repair

    Circuit shared with other loads

    A cellar unit plus a dehumidifier, a freezer or a heater on one circuit can pass its limit when they all start together. The unit's manual states what it needs; moving the other loads is the first test.

    No repair: check it yourself
  2. 02 low to moderate

    Water reaching wiring or the controller

    A blocked condensate drain can let water reach the unit's wiring or the outlet below it, and a GFCI sees the leak to ground at once.

    Fixed by cellar condensate drain and pump repair See cellar cooling unit leaking water
  3. 03 low to moderate

    Fan motor with a shorted winding

    A fan motor that has overheated can short to its frame and trip either kind of breaker as soon as it is powered.

    Fixed by cellar evaporator and condenser fan repair
  4. 04 moderate to highest

    Compressor drawing too much at start

    A failing start component or a compressor with a shorted winding draws a surge that the breaker will not allow. It usually trips within a second of the start.

    Fixed by cellar compressor and sealed system repair
  5. 05 varies

    Overheating from a choked exhaust

    A unit that cannot shed its heat draws more current as it gets hotter, and a breaker that holds in the morning can trip by afternoon.

    Fixed by cellar cooling load and room check See cellar cooling unit exhaust overheating
  6. What it costs

    Every repair on the site's cost scale, side by side

    Open the cost guide

The makes
it happens on.

7 makes on this site; cellar cooling unit tripping the breaker can show up on any of them. Each mark opens that make's own page.

All 7 brands

Cellar Cooling Unit Tripping the Breaker,
where we come out.

9 metros, each with its own page.

All service areas

Tampa BayFL · 31 areas

OrlandoFL · 30 areas

Miami / South FloridaFL · 47 areas

New York MetroNY · 75 areas

HoustonTX · 36 areas

ChicagoIL · 50 areas

Los AngelesCA · 95 areas

San DiegoCA · 31 areas

San Francisco Bay AreaCA · 74 areas

A couple lifting a bottle from a lit stone-walled wine cellar, the cooling unit's grille high on the far wall
For the heart of your home.

Questions about
cellar cooling unit tripping the breaker.

Why does my wine cellar unit trip the breaker only in summer?
In hot weather the unit runs longer and hotter, especially if its exhaust side is a warm closet or garage, and it draws more current as the heat builds. A tired compressor start part also struggles more in heat. Both show up as summer trips.
Should a cellar unit be on its own circuit?
Most makers call for it. A unit that shares a circuit with other steady loads can trip it without anything being broken. The installation manual for your model lists the circuit it needs.
Is it safe to plug the unit into another outlet with an extension cord?
No. An extension cord adds heat and a weak point under a load that runs for hours, and it can hide the real cause. Leave the unit off and keep the cellar door shut until it is looked at.
The GFCI trips but the breaker never does. What does that tell you?
A GFCI trips on current leaking to ground, most often through moisture. On a cellar unit that usually means condensate reaching wiring or a cord, so we look at the drain as closely as at the electrical parts.
