What E1
actually means.
E1 only appears on a start from a warm room. If the cellar reads above 75°F at power-up and the sensor sees too little cooling within 45 minutes, the Sentry III stops the unit and flashes E1 in turn with the temperature.

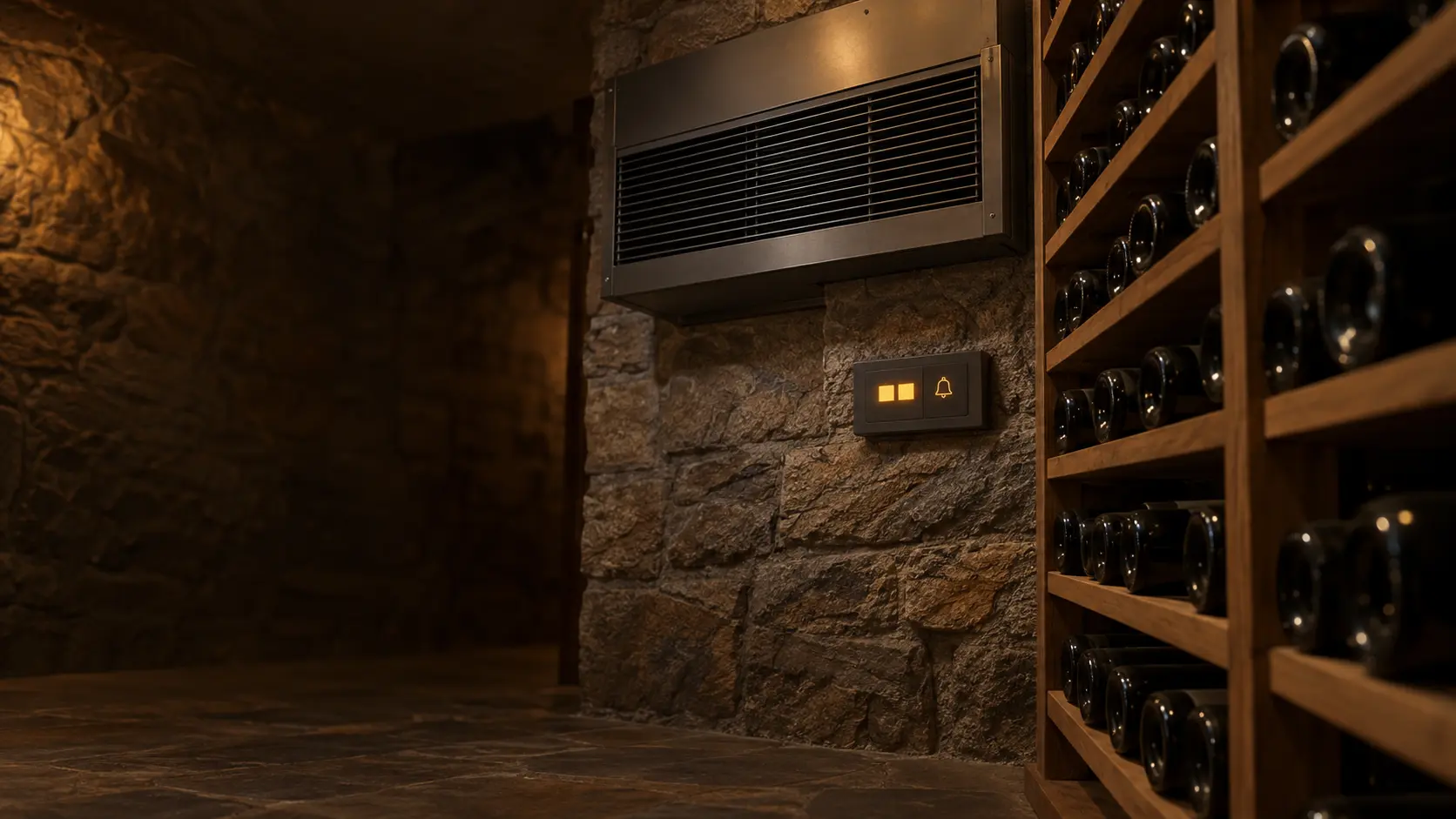

Breezaire wine cellar cooling unit display
What to do when E1 shows on the wine cellar cooling unitKind of codeTemperature and alarms
The controller saw the cellar go past a high or low limit and raised an alarm, sometimes holding the worst reading it logged while the house was empty. The reason can be as small as the cellar door left ajar after a tasting or a long outage, a room gaining heat from new lights or a sunny glass wall, or as serious as cooling that has stopped. Keep the door shut and read a thermometer on a middle rack before touching anything; the alarm is a warning about the collection, not yet a diagnosis.
Usually leads toCellar cooling load and room check
Measuring the cellar as the cooling unit sees it: insulation, vapor barrier, door, glass and the heat load, to show whether the unit can ever keep up.

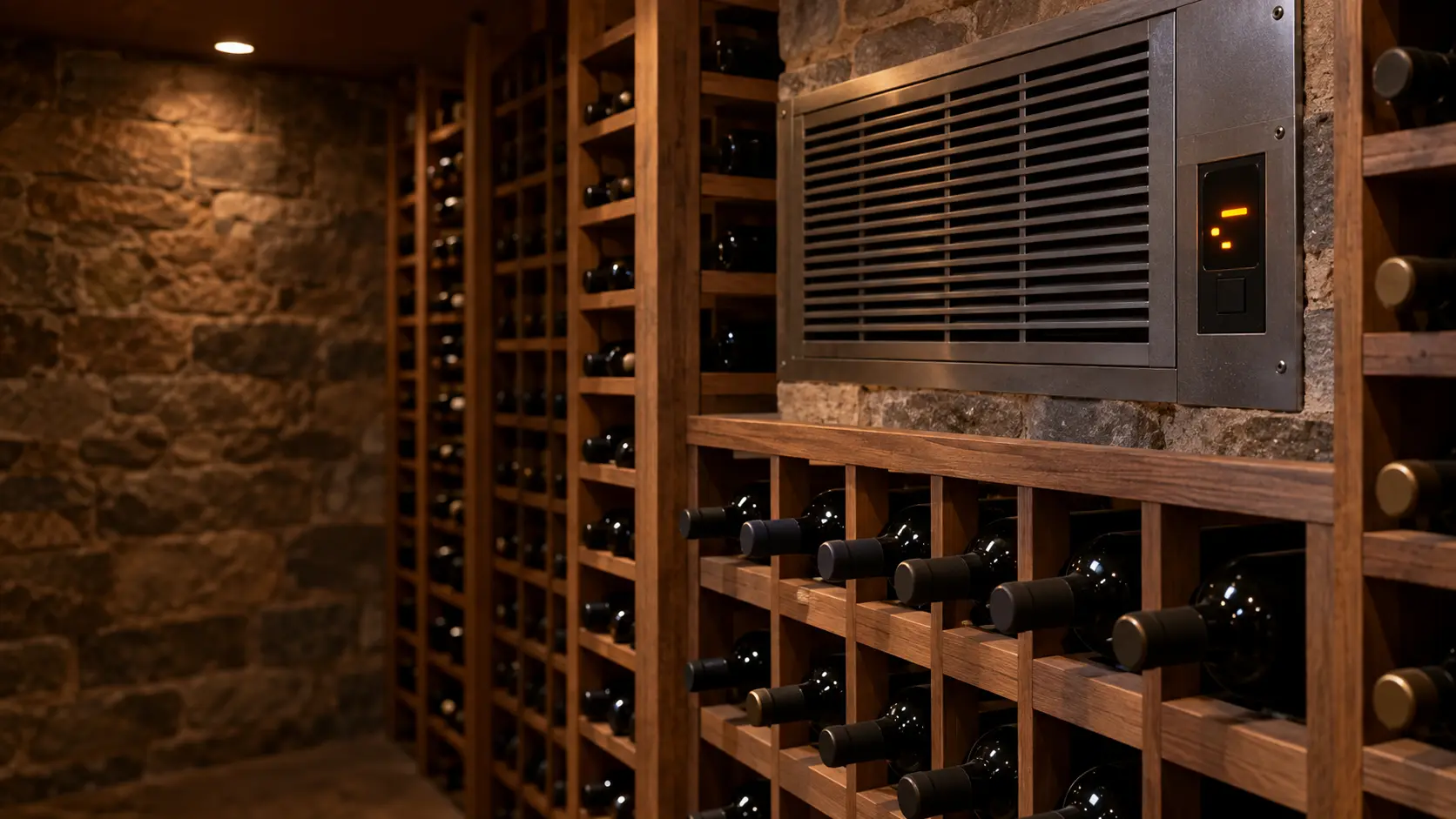

Shows up asCellar Cooling Unit Error Code
A cellar cooling unit error code appears as letters or digits on the controller, a flashing reading, a blinking light on the unit, or an alarm tone, sometimes while the cellar still holds its temperature.
MakeBreezaire
Visits to cellars cooled by a Breezaire unit, starting with a thermometer among the racks and a hand at the exhaust grille.
SourceBreezaire Sentry III Plus Controller owner's manual
Sentry III and Sentry III Plus controllers on WKL through-the-wall units and WKSL split systems. Older WKS splits built before mid-2010 used a manual thermostat and show none of these codes.
Before you book,
in this order.
Each step comes from Breezaire's own guidance for E1 on its wine cellar cooling units. Follow it to the end: the last card says whether this is a visit.
Keep the cellar door closed; Breezaire asks for this during the first cool-down so the unit is not fighting outside air.
Check the warm side: the exhaust grille needs about 3 feet of open air and a ventilated room to throw heat into.
Restart with a manual reset, holding WARMER for at least 5 seconds, or unplug the unit for 10 minutes or more.
If E1 comes back on the next start, feel whether the exhaust air is warm, note it, and book a visit.
Still there?
It usually turns into cellar cooling load and room check. Book with the code and the model number.
What not to do
E1 is not a verdict on the compressor; it says the room did not cool fast enough from a very warm start. A cellar that warms up later, after the unit has already brought it down once, shows OH instead.
What you may
notice with it.
The wine cellar cooling unit problems E1 tends to arrive with. Answer these at the wine cellar cooling unit before anyone is booked.
All problems
Where E1 usually leads
Cellar cooling load and room check.
Breezaire
wine cellar cooling units.
Visits to cellars cooled by a Breezaire unit, starting with a thermometer among the racks and a hand at the exhaust grille.
Breezaire wine cellar cooling unit repairMore Breezaire codes
Temperature and alarms on other makes

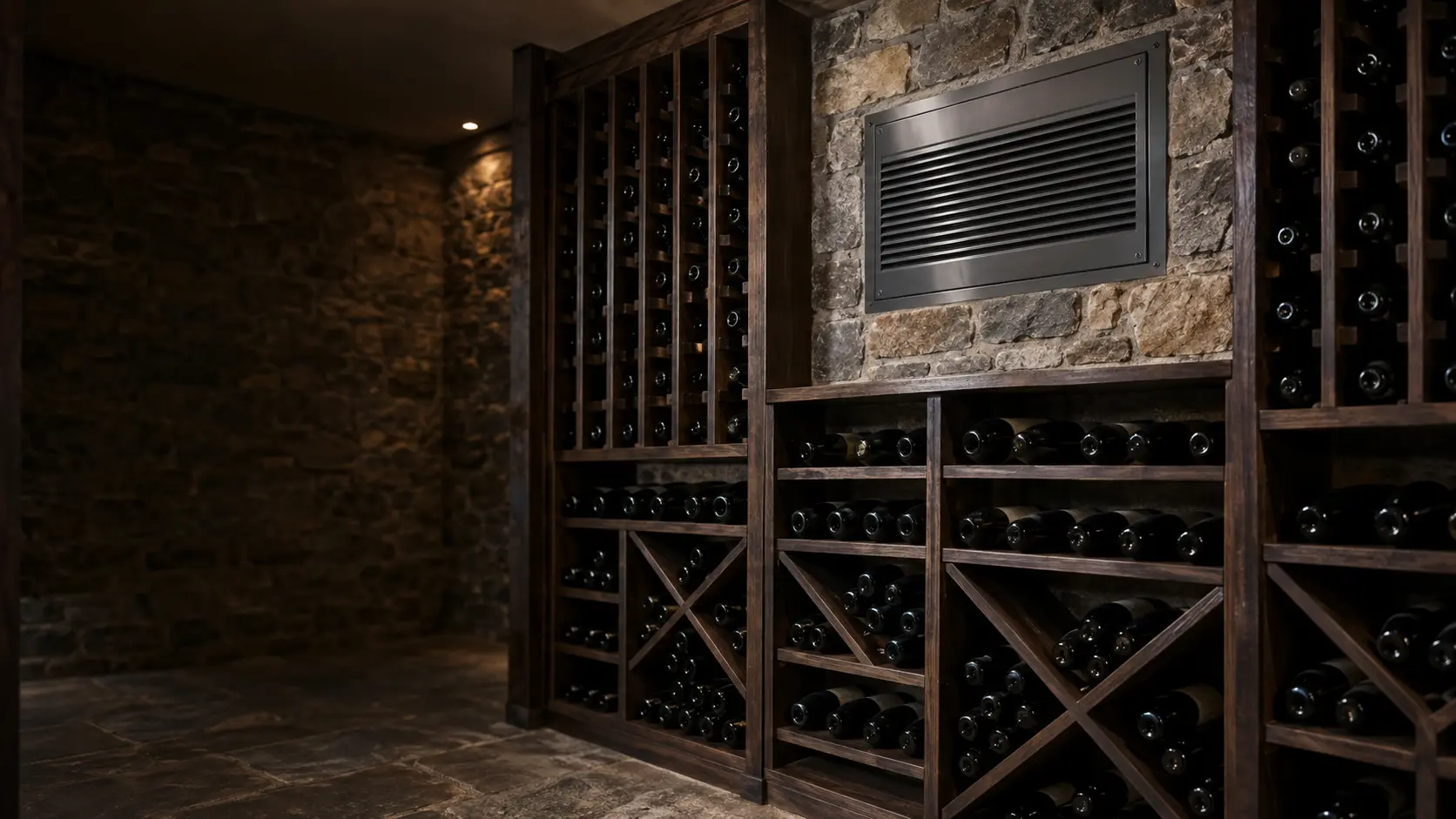

Through-the-wall cellar cooling unit
A self-contained box set into an opening in the cellar wall: its cold face blows into the wine room, and its warm face breathes out into the room next door.

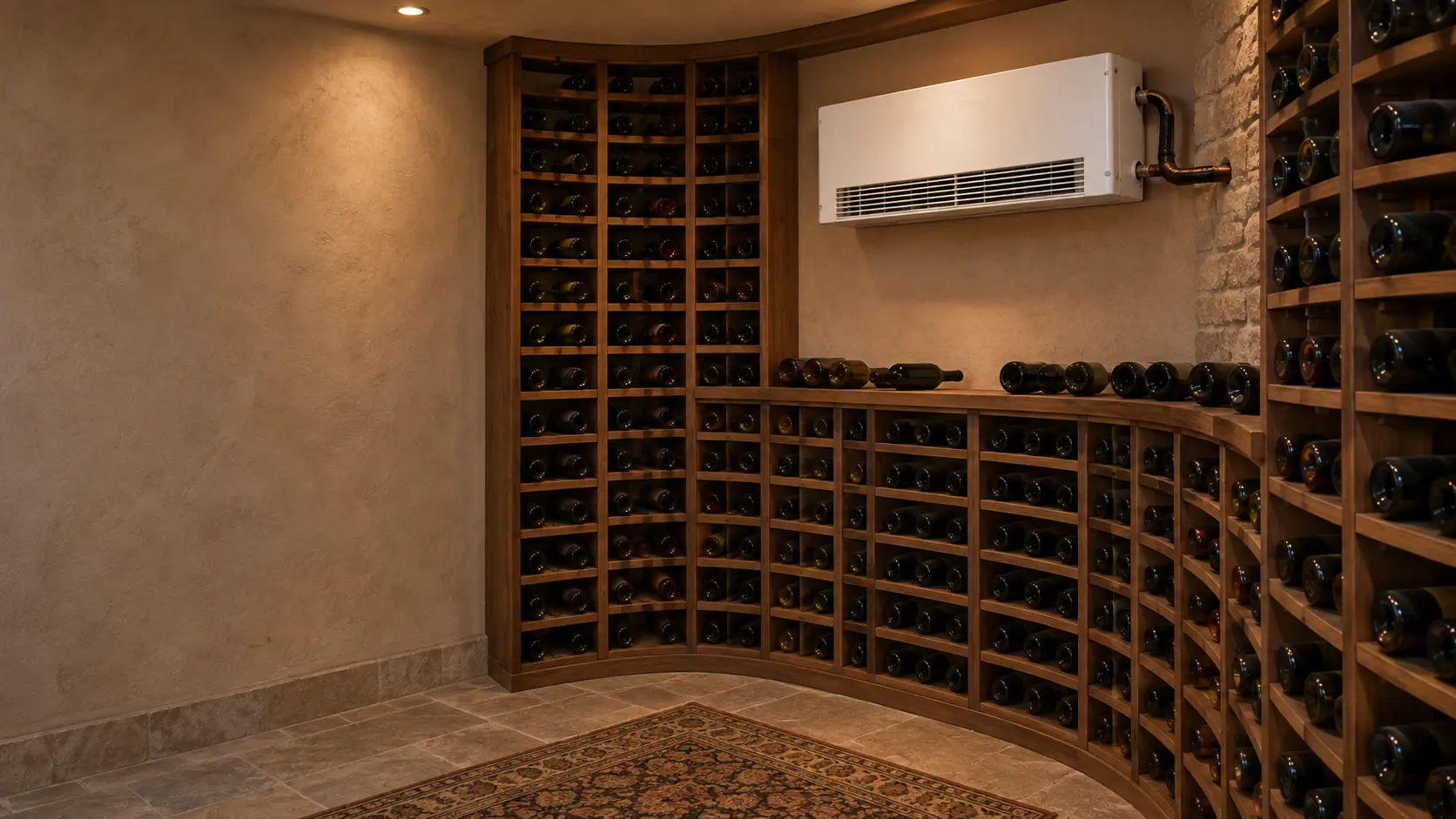

Split-system cellar cooling
An evaporator inside or beside the cellar and a condensing unit outside or in another room, joined by an insulated copper line set and charged on site.
In Breezaire's own words
the unit will automatically shut off, and the display will flash alternately “E1” and the temperature.
Every code on this site is taken from the manufacturer's documentation, never from a forum or a parts listing. Sentry III and Sentry III Plus controllers on WKL through-the-wall units and WKSL split systems. Older WKS splits built before mid-2010 used a manual thermostat and show none of these codes.
Breezaire E1 wine cellar cooling unit repair,
where we come out.
The same visit in every metro below: the code, the model number, and a diagnosis before any part is ordered.
All service areasTampa BayFL · 31 areas
Miami / South FloridaFL · 47 areas
New York MetroNY · 75 areas
HoustonTX · 36 areas
ChicagoIL · 50 areas
Los AngelesCA · 95 areas
San DiegoCA · 31 areas
Questions
about E1.
Can I clear E1 myself?
Why did my newly installed Breezaire show E1?
Is it safe to keep restarting a Breezaire after E1?
Can a Breezaire WKSL split show E1 too?
Back to your everyday
Still showing E1?
When you book, type the code or the blink count as the controller shows it, add the full model number, and say what the thermometer in the cellar reads now — that gives the technician a head start.
