CellarCool AH1: the cellar is warmer than the high alarm allows
AH1 is CellarCool's high temperature alarm.
Mon–Sat, 8am–8pm
- Temperature and alarms
- Cellar cooling load and room check
- Source: CellarCool
Book a visit
Three short steps, about a minute.
or call (844) 398-5977
Loading appointment form…
The appointment form couldn’t load. Please try again.
What AH1
actually means.
AH1 is CellarCool's high temperature alarm. Its margin depends on the controller: 4°F above setpoint on the CM2500 and Ultimate-R, 8°F on the 3500-S and 5000-S splits, and 10° on the CX, which reads air rather than a bottle. It means the unit is not keeping up, from a room that lets in heat, an exhaust space that is too hot, an undersized unit or a unit that is failing to cool.
CellarCool wine cellar cooling unit display · also shown as “AH1”
What to do when AH1 shows on the wine cellar cooling unitKind of codeTemperature and alarms
The controller saw the cellar go past a high or low limit and raised an alarm, sometimes holding the worst reading it logged while the house was empty. The reason can be as small as the cellar door left ajar after a tasting or a long outage, a room gaining heat from new lights or a sunny glass wall, or as serious as cooling that has stopped. Keep the door shut and read a thermometer on a middle rack before touching anything; the alarm is a warning about the collection, not yet a diagnosis.
Usually leads toCellar cooling load and room check
Measuring the cellar as the cooling unit sees it: insulation, vapor barrier, door, glass and the heat load, to show whether the unit can ever keep up.

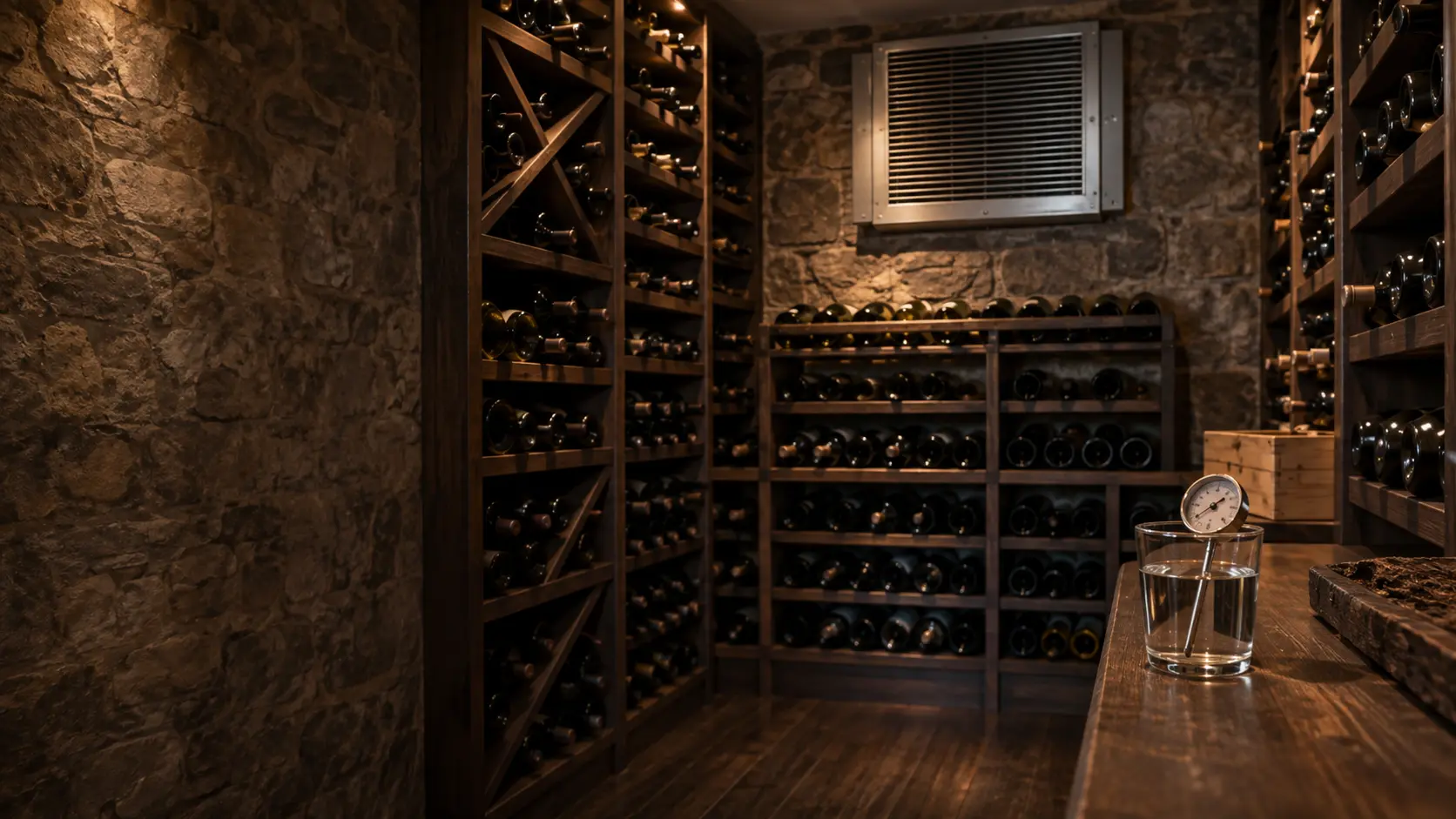

Shows up asWine Cellar Too Warm
A wine cellar too warm shows up slowly: the room smells of the house instead of cool stone, a bottle picked from a middle rack feels barely cooler than your hand, and the wall thermometer has crept from the mid 50s into the 60s over a week.
MakeCellarCool
Service for CellarCool systems when the wine room drifts warm, turns dry or the unit starts and stops every few minutes.
SourceCellarCool CM2500 (Ceiling Mount split) manual, version 4 (02/2022)
Both CellarCool controller types: the CX through-the-wall controller and the digital controller on Ceiling Mount, split and Ultimate models.
Before you book,
in this order.
Each step comes from CellarCool's own guidance for AH1 on its wine cellar cooling units. Follow it to the end: the last card says whether this is a visit.
Check the cellar door and any windows are closed and sealed; if the room passes about 70°F, move the best bottles somewhere cooler.
Check the space the unit exhausts into; CellarCool rates each unit for a set difference between cellar and exhaust air.
If the unit was just installed or restarted, allow it time to bring the room down.
If AH1 keeps returning with the room sealed, book a visit to check airflow, probe calibration and the refrigeration side.
Still there?
It usually turns into cellar cooling load and room check. Book with the code and the model number.
What not to do
AH1 is a reading about the cellar, not a named broken part. On a CX the 10° margin is wide, so an AH1 there means a larger drift than the same code on a Ceiling Mount unit.
What you may
notice with it.
The wine cellar cooling unit problems AH1 tends to arrive with. Answer these at the wine cellar cooling unit before anyone is booked.
All problems
Where AH1 usually leads
Cellar cooling load and room check.
CellarCool
wine cellar cooling units.
Service for CellarCool systems when the wine room drifts warm, turns dry or the unit starts and stops every few minutes.
CellarCool wine cellar cooling unit repairMore CellarCool codes
Temperature and alarms on other makes
Through-the-wall cellar cooling unit
A self-contained box set into an opening in the cellar wall: its cold face blows into the wine room, and its warm face breathes out into the room next door.

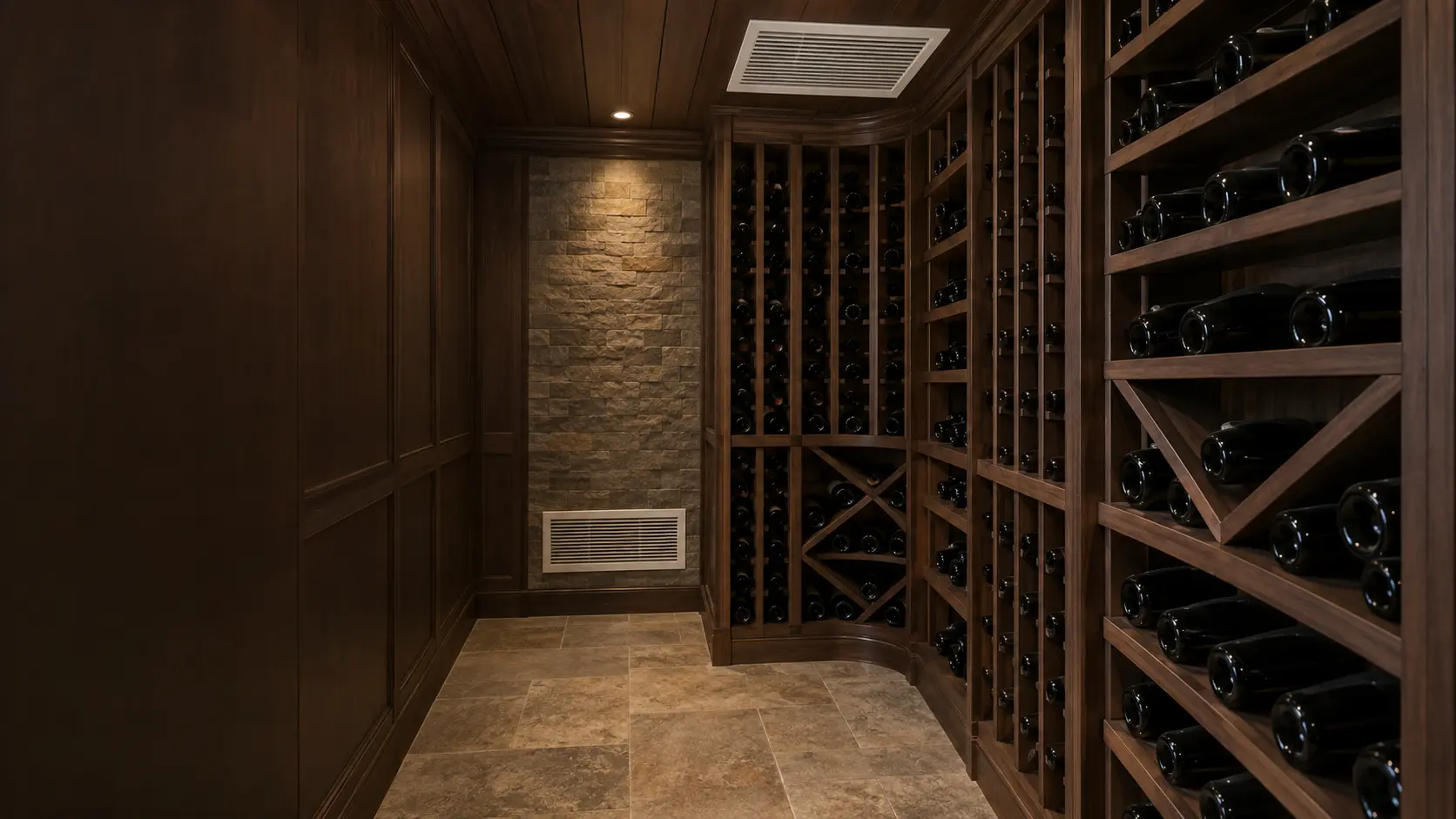

Ducted cellar cooling unit
A self-contained cooling unit placed outside the cellar, in a mechanical room, attic or basement, that sends chilled air in and takes return air back through insulated ducts.
Split-system cellar cooling
An evaporator inside or beside the cellar and a condensing unit outside or in another room, joined by an insulated copper line set and charged on site.
In CellarCool's own words
The bottle probe is sensing a temperature that is 4°F above the setpoint
Every code on this site is taken from the manufacturer's documentation, never from a forum or a parts listing. Both CellarCool controller types: the CX through-the-wall controller and the digital controller on Ceiling Mount, split and Ultimate models.
CellarCool AH1 wine cellar cooling unit repair,
where we come out.
The same visit in every metro below: the code, the model number, and a diagnosis before any part is ordered.
All service areasTampa BayFL · 31 areas
Miami / South FloridaFL · 47 areas
New York MetroNY · 75 areas
HoustonTX · 36 areas
ChicagoIL · 50 areas
Los AngelesCA · 95 areas
San DiegoCA · 31 areas
Questions
about AH1.
Can I clear AH1 myself?
Why is the CellarCool AH1 margin different on my CX?
Could the room behind my CellarCool cause AH1?
Does a new CellarCool show AH1 during start-up?
Back to your everyday
Still showing AH1?
When you book, type the code or the blink count as the controller shows it, add the full model number, and say what the thermometer in the cellar reads now — that gives the technician a head start.
